REFUsol 125K-10T
125 kW inverter for C&I and utility-scale PV systems
- 10 MPP trackers
- 150% DC overload capability
- Max. efficiency up to 98.6%
- Integrated PID recovery
Optimized for the following applications
Large-scale ground-mounted PV systems with high system voltages
For EPCs, project developers and operators
High-performance inverter for flexible PV systems
The REFUsol 125K-10T is designed for commercial and industrial PV systems and offers maximum flexibility in system design with 10 independent MPP trackers. Even complex rooftop and ground-mounted installations can be implemented efficiently.
Thanks to its high DC overload capability and integrated features such as PID recovery, the inverter ensures stable and long-term optimized energy generation – both in new installations and in repowering projects.
Technical advantages and applications
Maximum flexibility
- 10 independent MPP trackers
- Flexible string design
- Ideal for complex system layouts
High power density
- 125 kW output power
- Up to 150% DC overload capability
- Optimized energy yield
Reliable operation
- IP66 protection class
- Operating temperature up to +60°C
- Operation at altitudes up to 4,000 m
Advanced features
- Integrated PID recovery
- String monitoring per MPPT
- Comprehensive protection functions
The performance and reliability of the REFUsol 125K-10T are proven in numerous utility-scale and C&I projects → View references

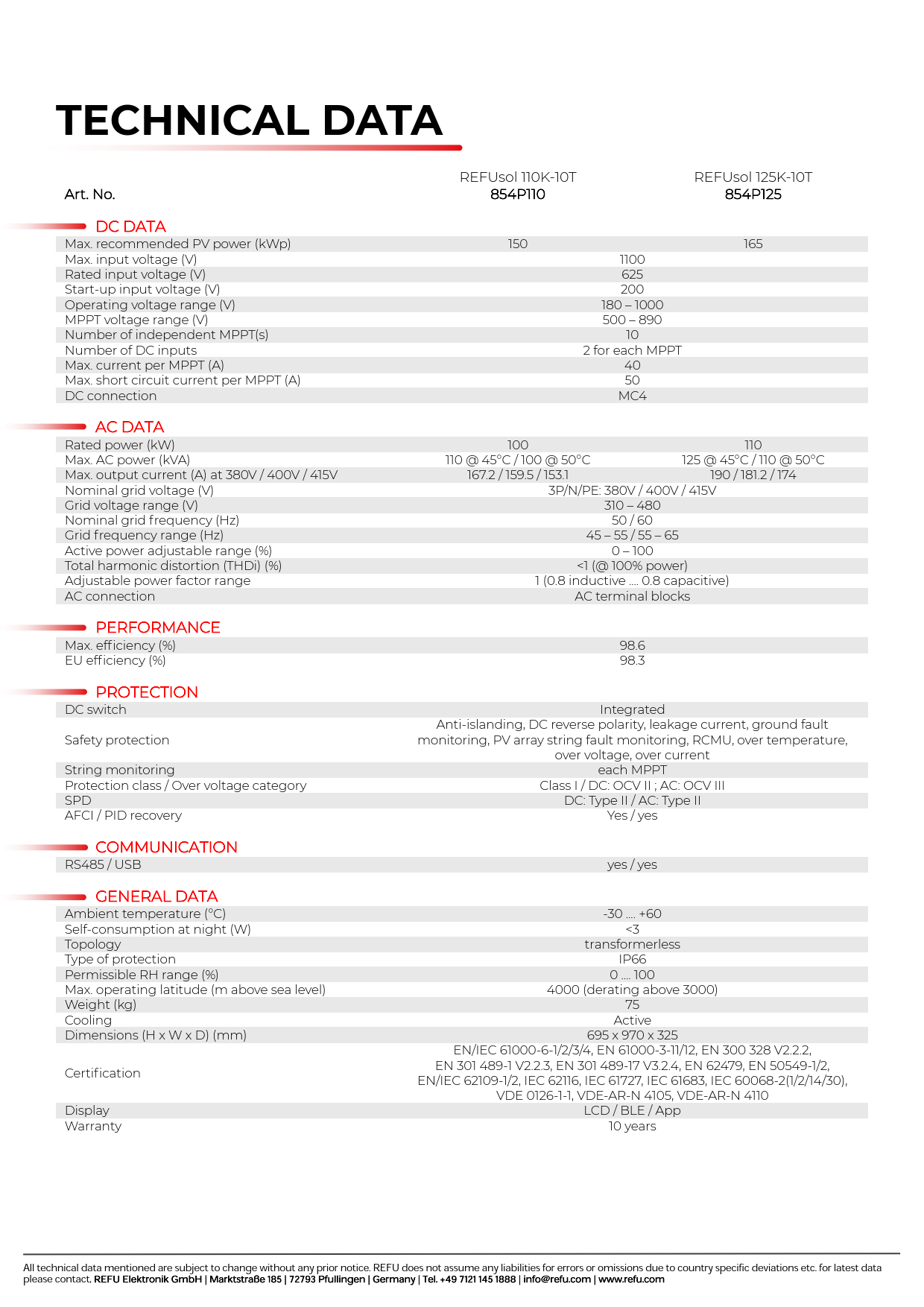

Technical data at a glance
All technical specifications, connection data, and operating parameters can be found in the datasheet.

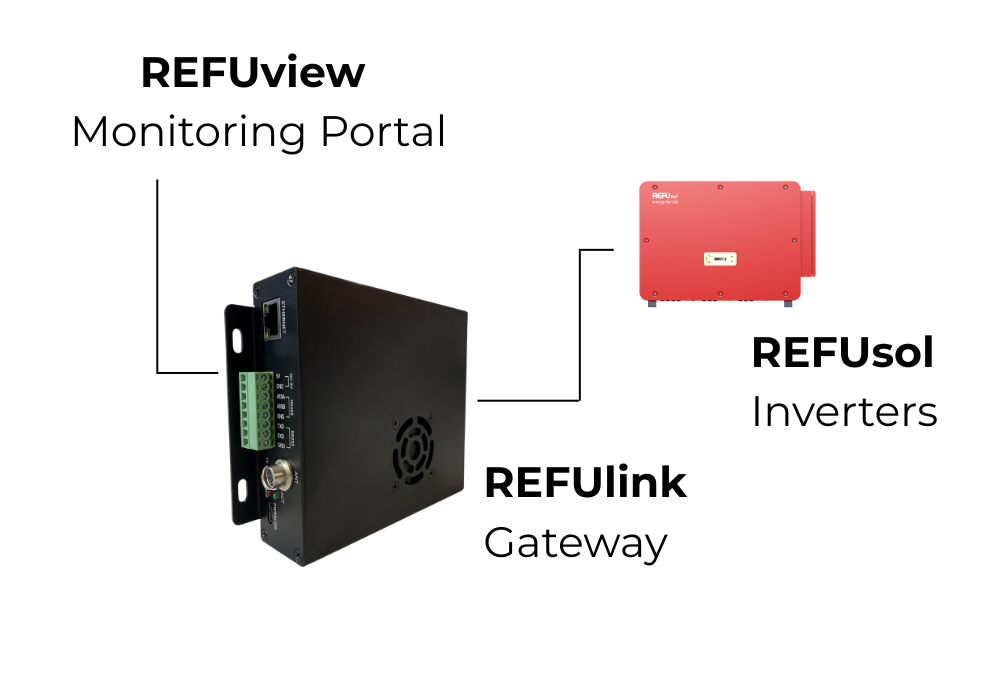

Seamless integration into your PV infrastructure
The REFUsol 125K-10T can be seamlessly integrated into both existing and new PV systems. In combination with REFUlink and REFUview, it enables a comprehensive system architecture for monitoring, control, and data analysis.
Monitoring
Real-time monitoring with REFUview
Central platform for system overview, performance analysis, and fault diagnostics in real time.
Control
Power control via REFUlink
Active and reactive power control via Modbus TCP/IP, as well as compliance with grid requirements via DRM interfaces.
Integration
Integration into existing systems
Seamless integration into existing control systems as well as support for mixed inverter generations.
Technical consultation for your PV project
Speak with our team about your requirements – from system design to integration into existing PV infrastructures.
